White Rabbit Switch by Creotech Quantum

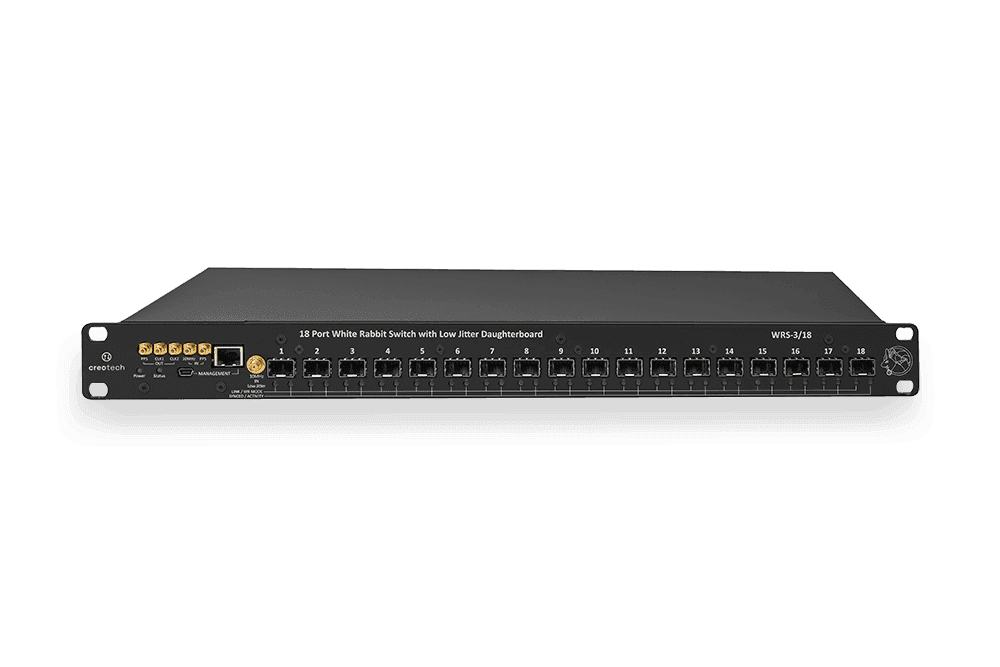

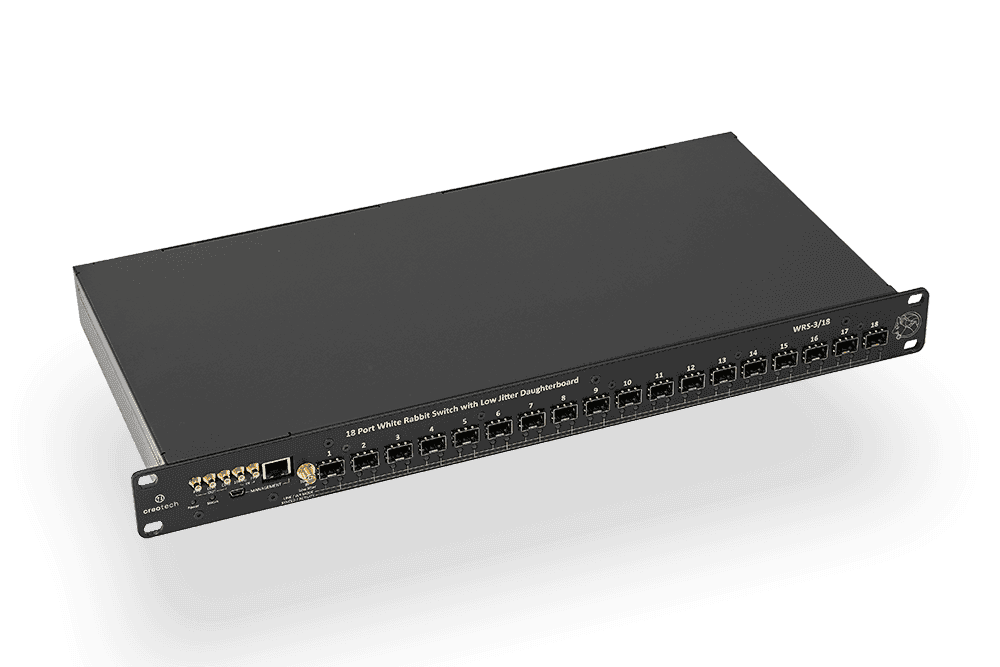

Front Panel

• 5× SMC connectors (1-PPS input/output, 62.5 MHz output, 10 MHz input)

• 18× SFP Gigabit Ethernet ports

• 10/100 Ethernet management port (connected to ARM processor)

• Mini-USB UART management port (connected to ARM processor)

• Power and status LEDs

• Link and Act LEDs for each SFP cage

Rear Panel

• 2× Mini-USB UART debug ports (connected to ARM CPU and FPGA I/Os)

• 2× cooling fans

• 2× micro switches and power button

• 1× grounding connector

Processor & FPGA

• Xilinx Virtex-6 FPGA (LX240T FFG1156)

• ARM Atmel AT91 SAM9G45 processor, 400 MHz

Clocking Resources

• Low-jitter clock generator (TI CDCM61002, 28–683 MHz, used as DMTD offset clock in WRS HDL)

• 25 MHz VCXO FNETHE025, SPI-controlled DAC (AD5662, 16-bit) for CDCM61002

• 25 MHz VCO, SPI DAC-controlled (AD5662) driving AD9516

• 25 MHz XO FNETHE025 (main FPGA clock)

• PLL with 14 outputs, integrated 1.6 GHz VCO (AD9516) for Xilinx GTX and μTCA interfaces

• Internal oscillator VM53S3-25.000 (tied to main WR clock or free-running)

Memory

• 64 MB DDR2

• 256 MB NAND

• 8 MB boot flash

Software

• Linux kernel v3.16.38

• WRP daemon (node discovery and synchronization)

• PTPv2 daemon

Switching Features

• Multicast, Spanning Tree, GMRP/GARP support

• VLAN tagging

• SNMP protocol support

Other Features

• Remote management via SSH and SNMP

• Network boot via TFTP and remote firmware update

• Automatic IP configuration (DHCP)

• Power: 100–240 VAC, 2 A, 50–60 Hz input; 12 VDC, 6.66 A, 80 W output
