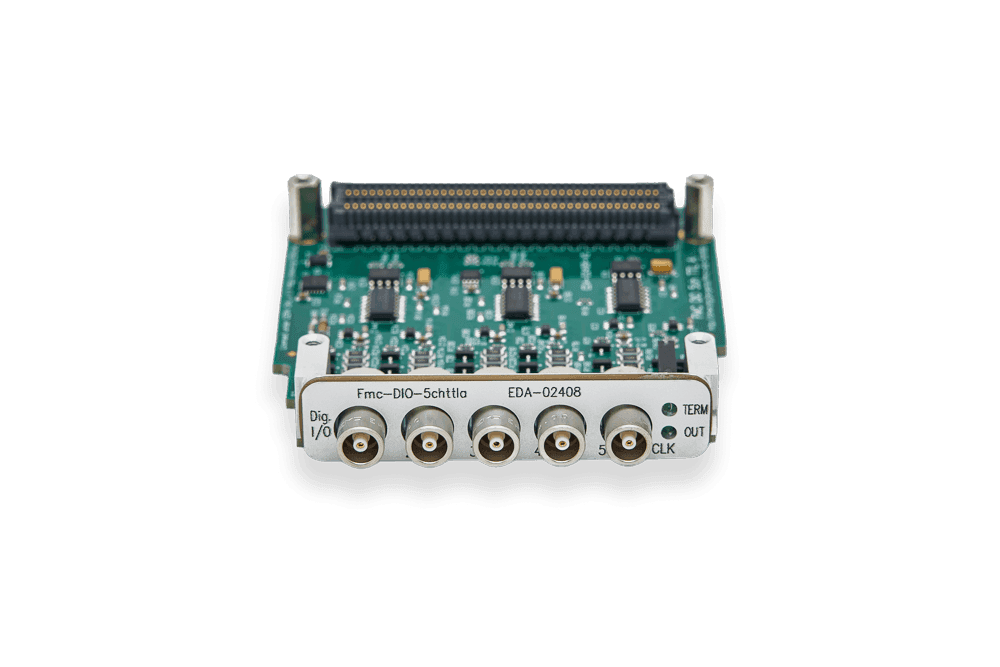

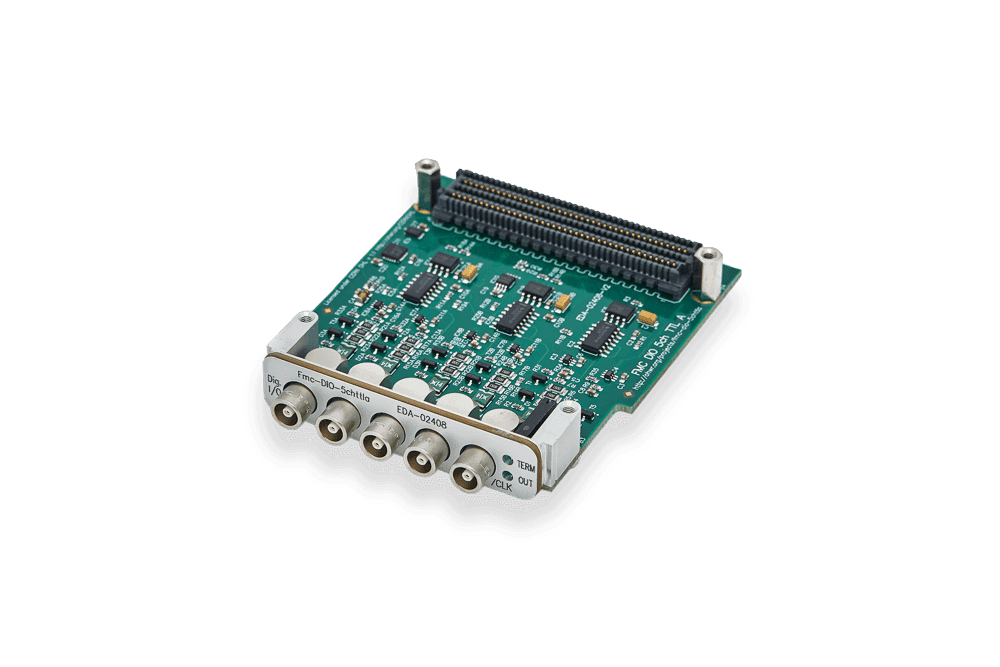

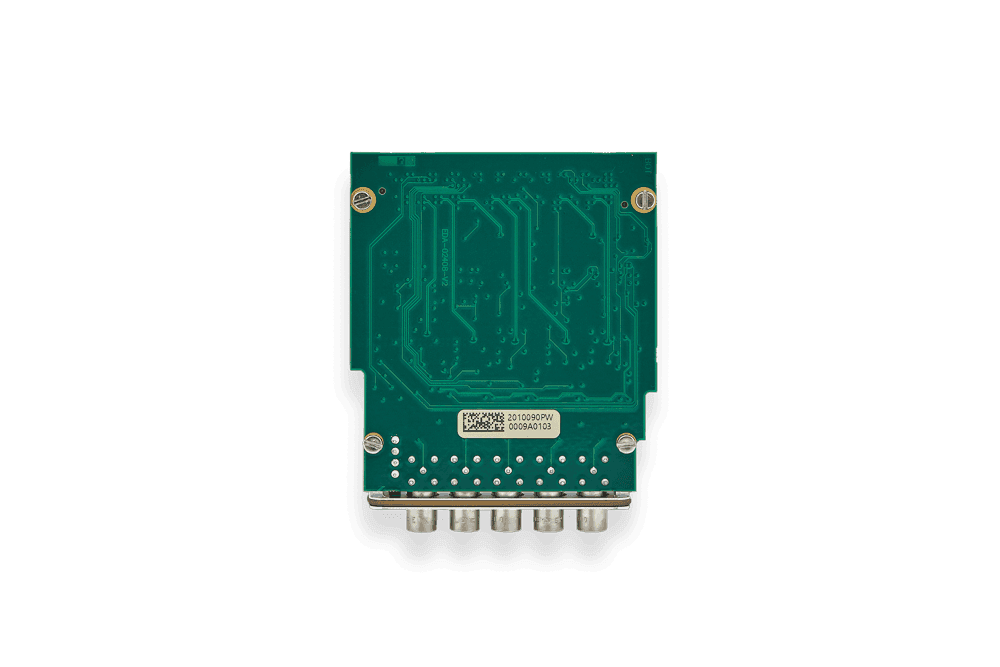

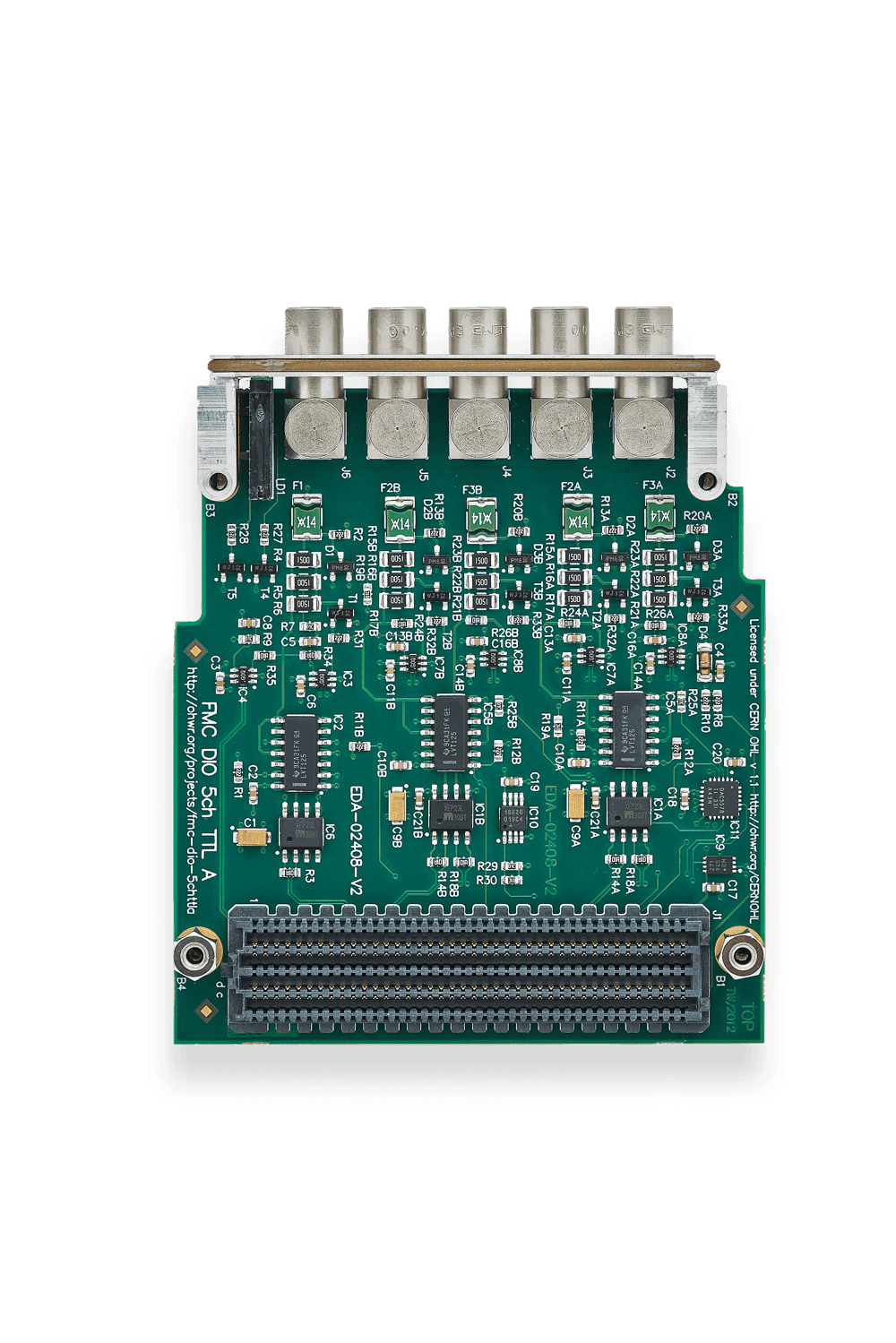

FMC DIO 5CH TTL A

5 I/O ports with independently programmable direction (LEMO 00 connectors)

• Output levels: LVTTL, capable of driving +2.5 V into 50 Ω; outputs go to Hi-Z when unpowered

• Input levels: any logic standard in the range Vih = 1 V to Vih = 5 V; threshold programmable per input

• Output rise/fall times: max. 2 ns; I/O bandwidth: 200 MHz

• Programmable 50 Ω input termination per channel

• LVDS I/O on the carrier side

• One input can drive the global clock grid on the operator’s FPGA

• Inputs and outputs protected against +15 V pulses up to 10 μs at 50 Hz

• 4-layer PCB ensuring stability and reliability

This module is designed to work with the Simple PCIe FMC Carrier – SPEC, creating a simple White Rabbit node for ultra-precise time and event distribution networks.
