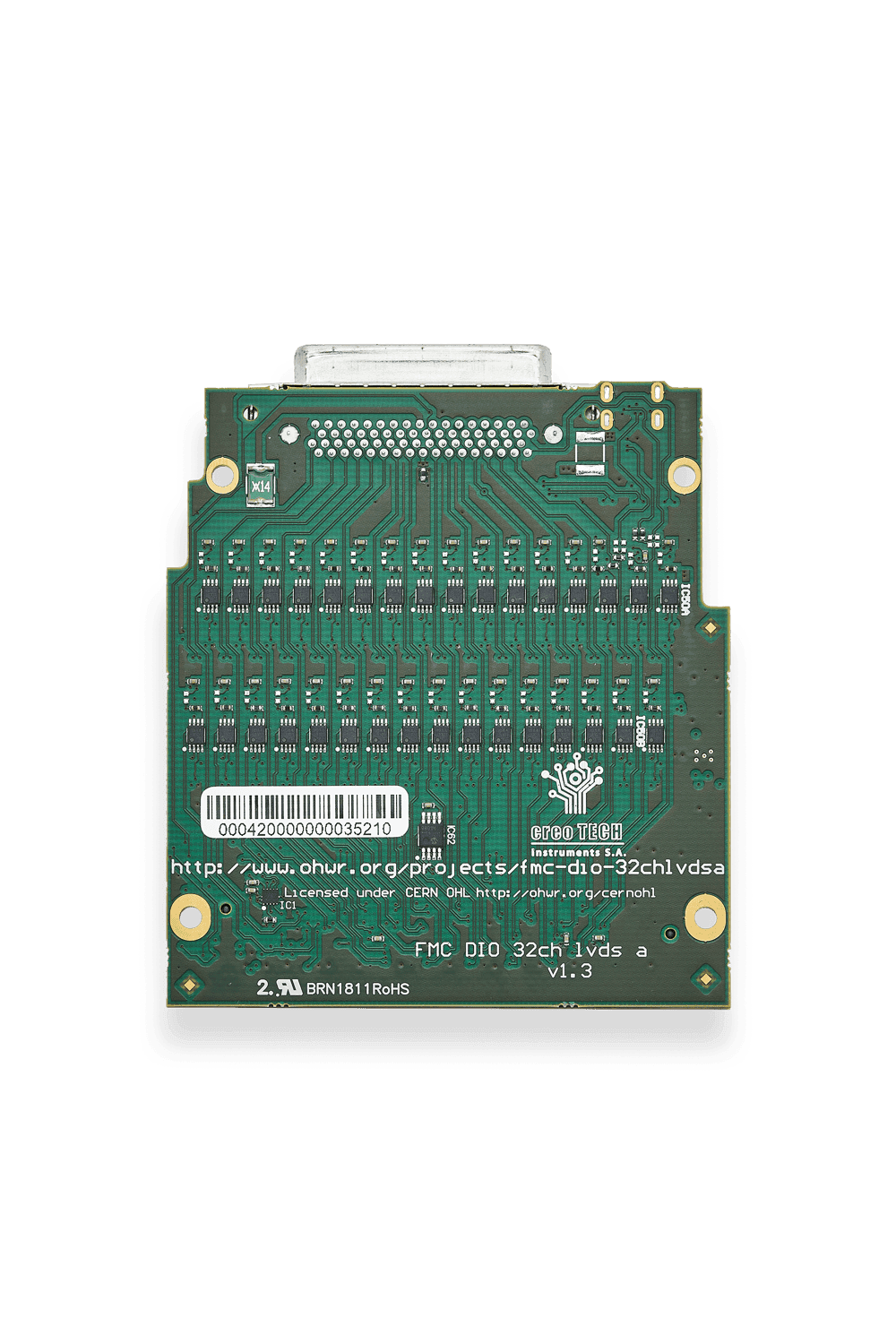

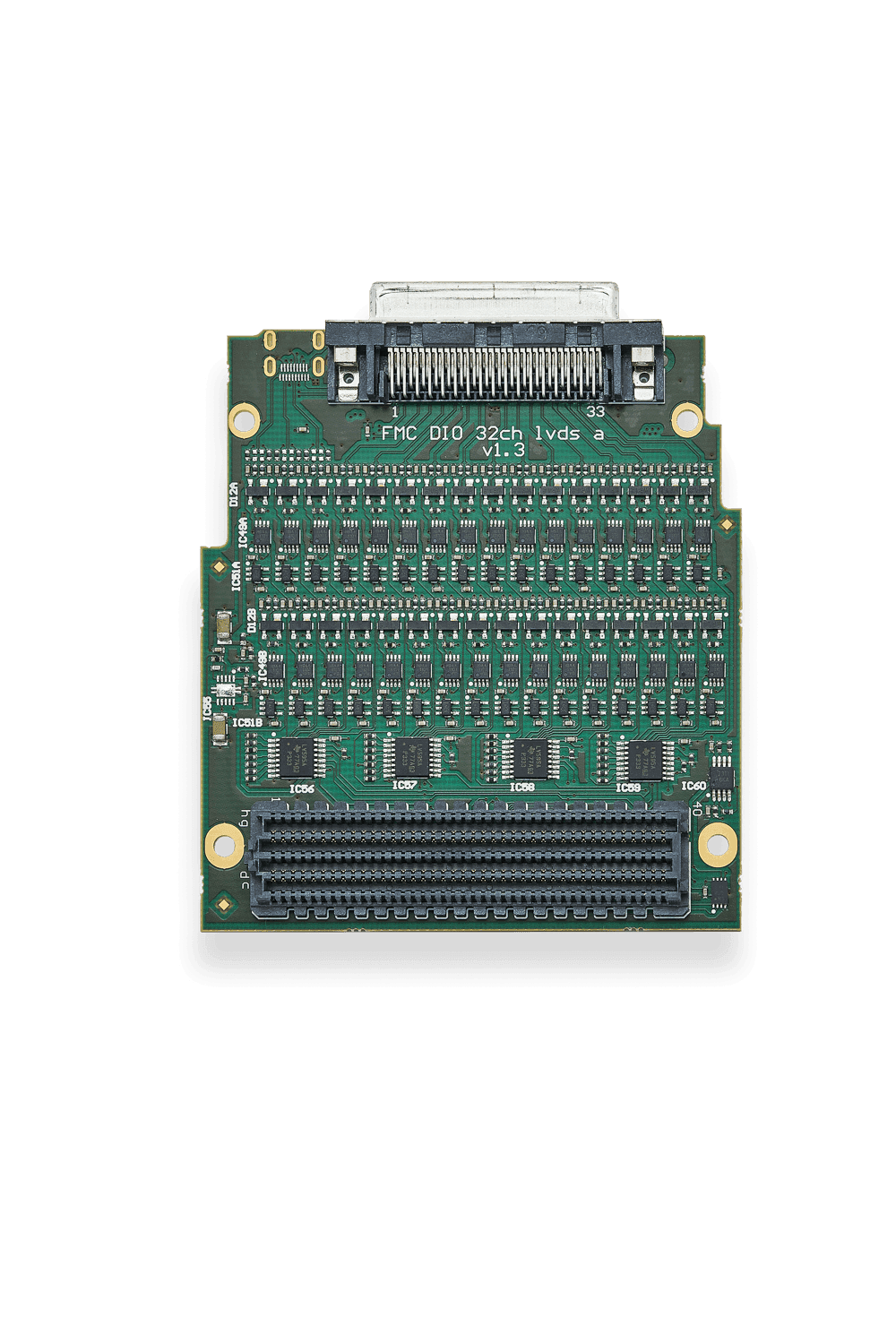

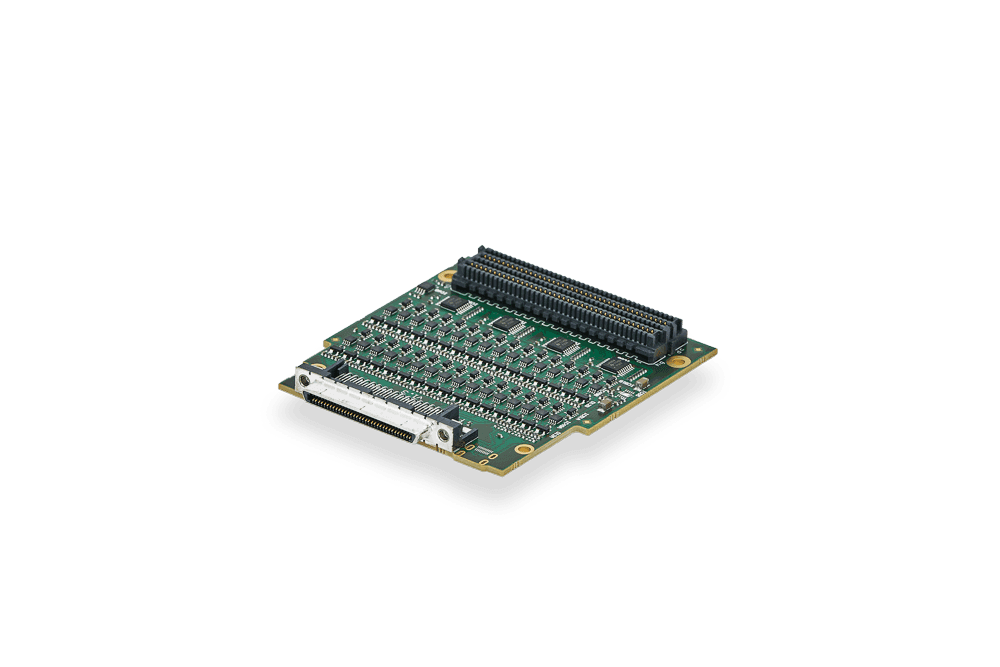

The FMC DIO 32CH LVDS A is a versatile 32-channel bidirectional LVDS card. It features a VHDCI connector compatible with the SCSI standard and a front-panel micro-HDMI connector carrying I²C and LVDS signals.
Each channel supports AC coupling and includes ESD protection. The ports are terminated to 1.65 V with dual 50 Ω resistors, and channel direction is programmable via an SPI-like serial interface. The VHDCI connector also provides 3.3 V power and a buffered I²C interface.
• Standard: FMC LPC
• 32 bidirectional I/O ports
• Output signal level: LVDS
• Input signal level: LVDS, terminated with dual 50 Ω resistors to a 1.65 V reference
• ESD protection on all I/O ports
• Data rate: 300 Mbit/s (tested); FIN1101K8X repeaters support up to 1.6 Gbit/s
• VHDCI connector compatible with the SCSI standard
• Optional micro-HDMI connector with four LVDS pairs and one clock signal
• Onboard temperature sensor (I²C)
• 4-layer PCB
• Designed for high-performance real-time systems requiring multi-channel data processing and ultra-precise time synchronization using White Rabbit technology.
• Compatible with our carrier boards in MTCA-based control and measurement systems.
• Typical applications include control and monitoring of large-scale research infrastructures.
We provide custom modifications of our hardware, firmware, and gateware, along with technical consulting in electronic engineering, system design, integration, and testing. For more information, contact our customer support team.
For more information, please contact our team.
