Booster HL

AvailableAsk

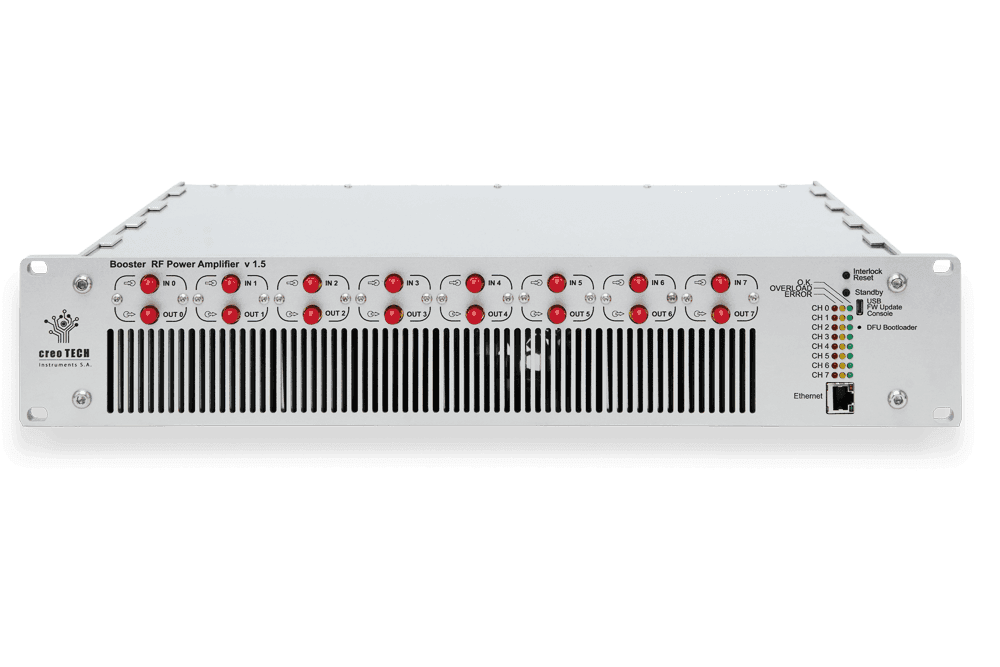

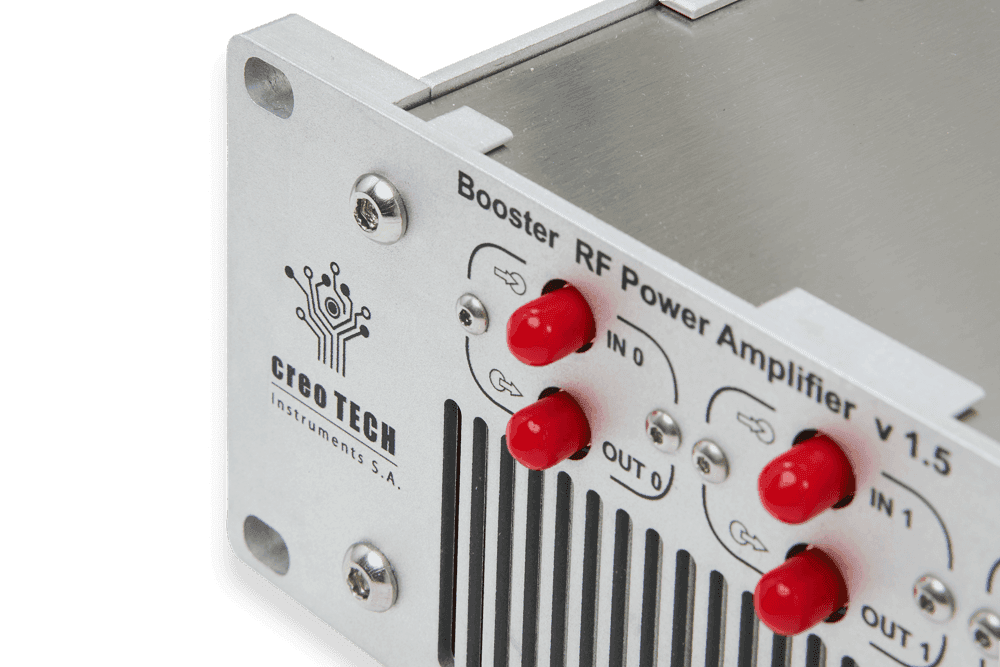

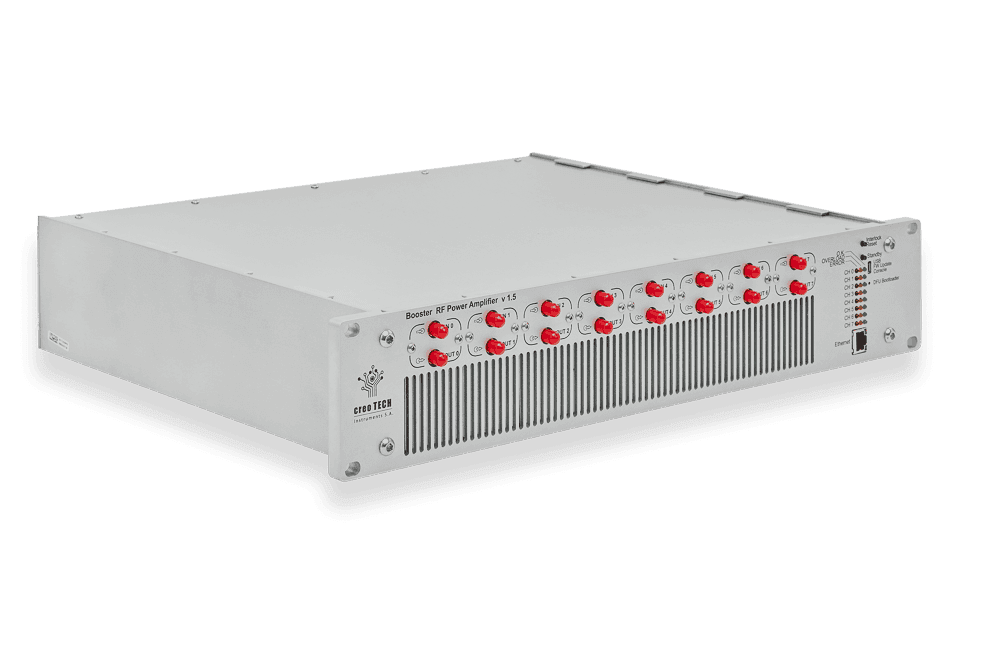

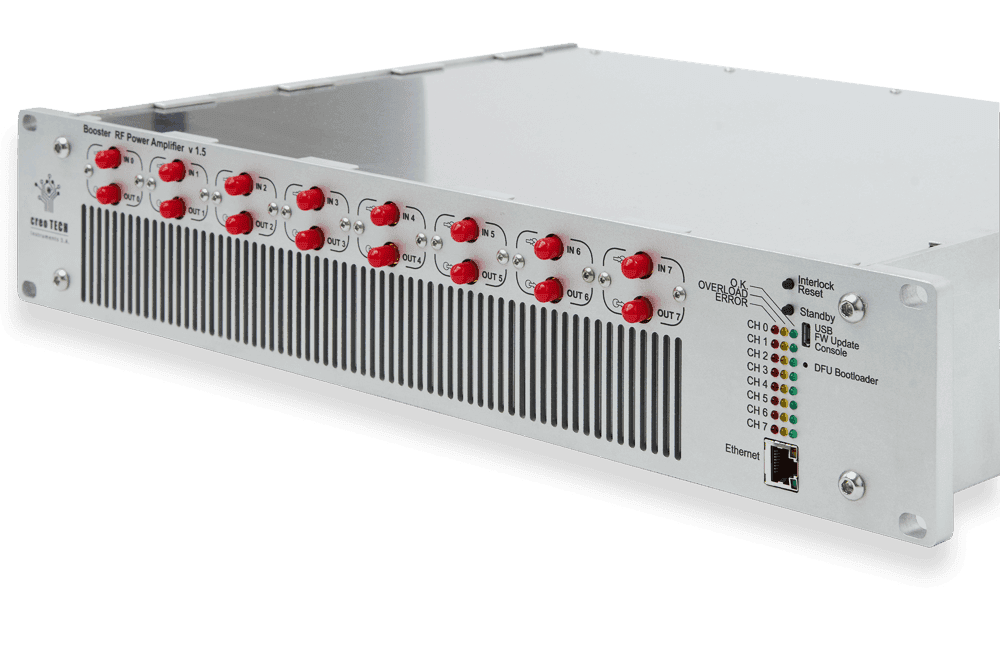

Booster HL is an 8-channel RF power amplifier delivering several watts across 100–500 MHz, housed in a compact 19” 2U chassis. It features very low signal distortion (THD), remote monitoring, and configurable interlocks via an Ethernet interface. The modular design allows field-replaceable channels, making Booster HL ideal for advanced RF applications requiring high linearity and precise control.

Technical Specifications

Power gain: 32 dB (±1.5 dB)

Bandwidth: 100–500 MHz

3 dB small-signal bandwidth: 40–600 MHz

Maximum input power (no damage): 25 dBm

User-configurable interlocks: Protects Booster and connected loads

Interface: Ethernet for monitoring and configuration

Per-channel remote monitoring: Input power, output forward/reverse powers, temperatures, currents, and voltages

Remote control: Individual channel control via Ethernet

Modular design: Field-replaceable channels for easy frequency band changes

Hardware/Firmware: Open source

Applications

High-linearity RF amplification for laboratory and research setups

Multi-channel RF distribution in control and measurement systems

Precision signal generation for test & measurement applications

Driving sensitive RF loads where low distortion is critical

Advanced RF experiments requiring per-channel monitoring and remote control

Integration with modular MTCA or custom RF architectures

Compare

Parameter

Booster HL (High Linearity)

Booster HE (High Efficiency)

Optimization

Very low signal distortion (THD)

Low cost, low power consumption

Power gain

32 dB (±1.5 dB)

40 dB (±1.5 dB)

Bandwidth

100–500 MHz

3 dB small-signal bandwidth

40–600 MHz

Max input power (no damage)

25 dBm

Related Products

Booster HE

8-kanałowy, wzmacniacz RF, dostarczający do 5 W mocy RF w zakresie 100 MHz–500 MHz. Obudowa 2U do montażu w szafie rack 19”. Booster HE został zoptymalizowany pod kątem niskiego poboru mocy, przy zachowaniu wysokiej wydajności. Posiada zdalny interfejs sterowany przez [...]

And There’s More

We provide custom modifications of our hardware, firmware, and gateware, along with technical consulting in electronic engineering, system design, integration, and testing. For more information, contact our customer support team.

Useful Links / Downloadable Resources

Booster HL & HE (leaflet)
